YONGLE 8316 PVC Automotive Wire Harness Tape 105°C
| application | Wire harness tape |
| carrier | PVC |
| caliper | 101~130μm |
| construction | Single-side Tape |
| compliace | RoHS, REACH |
| performace_feature | Flame Resistant |
| heat_resistance | 105℃ |

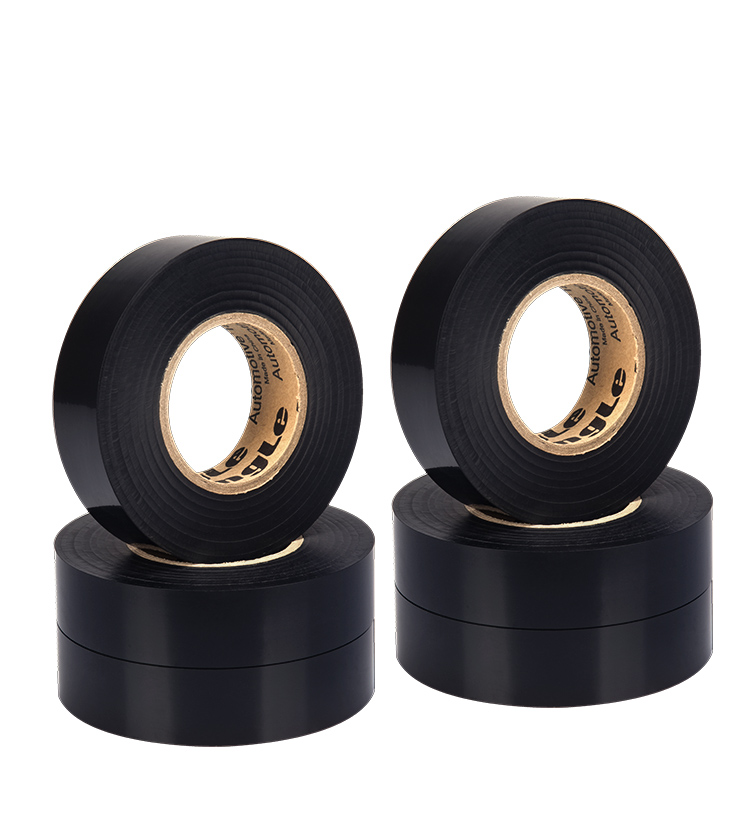

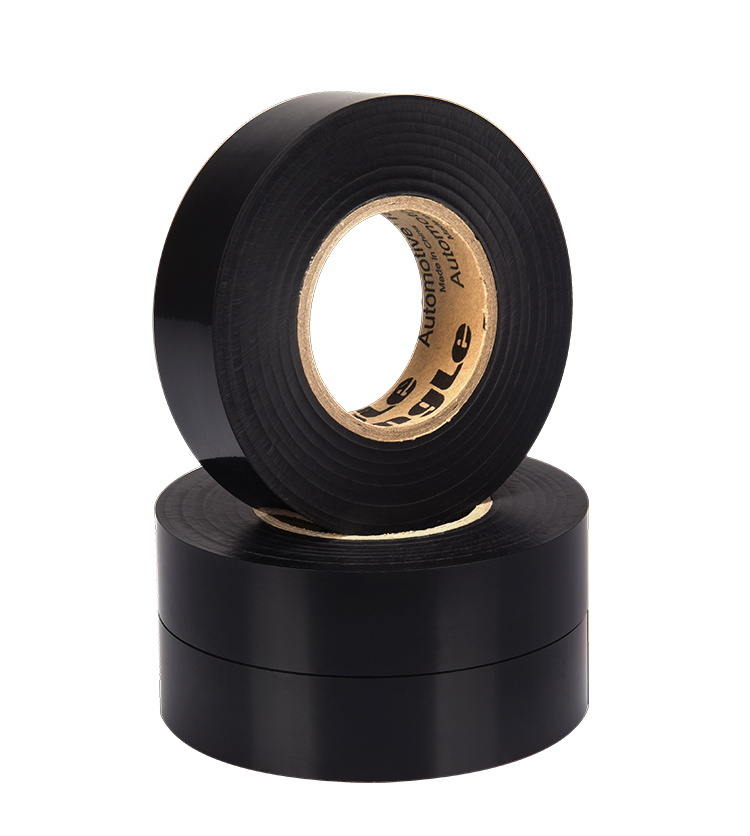

YONGLE 8316 is a PVC automotive wire harness tape supplied by Beijing Huaxia Yongle Adhesive Tape Co., Ltd. It is designed for permanent exterior wrapping of electrical wiring harnesses in passenger vehicles, trucks, electrical assemblies and electronic assemblies. The tape uses a soft PVC film carrier coated with a rubber-based adhesive. It is designed for hand application and automotive wiring harness wrapping, with pressure-sensitive adhesion, controlled unwind and good conformability. YONGLE 8316 is supplied in black as a standard color, with a standard roll length of 20 m and standard widths of 9 mm and 25 mm. Other sizes and colors are available on request according to project requirements.
| Property | Value | Unit | Test Method |
|---|---|---|---|
| Total Thickness | 0.12 ± 0.02 | mm | JIS-2107 |
| Adhesion to Backing — Normal State | >2.8 | N/19mm | JIS-2107 |
| Adhesion to Backing — After Heating 4 hrs @ 70°C | >3.0 | N/19mm | JIS-2107 |
| Adhesion to Plate — Normal State | >2.8 | N/19mm | JIS-2107 |
| Adhesion to Plate — After Heating 4 hrs @ 70°C | >3.0 | N/19mm | JIS-2107 |
| Tensile Strength — Normal State | >38 | N/19mm | JIS-2107 |
| Tensile Strength — After Heating 4 hrs @ 100°C | >34 | N/19mm | JIS-2107 |
| Elongation at Break — Normal State | >200 | % | JIS-2107 |
| Elongation at Break — After Heating 4 hrs @ 100°C | 150 | % | JIS-2107 |
| Unwind Force | 1.5–4.0 | N/cm | EN 1944 |
| Flammability | B (self-extinguishing) | V | LV 312 |
| Volume Resistivity | 1 × 10124 | Ω·cm | JIS-2107 |
| Breakdown Voltage | .5 | V | JIS-2107 |
| Temperature Rating | B: -25~105 | °C | LV 312 |
The above values are typical values and should not be used as written specifications. Customers are responsible for ensuring that the product meets the requirements of the intended application before approval for use.
| Color | Black |
| Length | 20 m |
| Width | 9 mm, 25 mm |
| Core ID | 38 mm |
| Custom Sizes & Colors | Available on request |
Storage: 20–30°C, maximum 65% relative humidity, away from direct sunlight and in the original packaging.
Shelf Life: Five years under the recommended storage conditions.
The technical values shown above are based on the YONGLE 8316 TDS. Actual application suitability should be evaluated and confirmed by the customer before approval for use.
Harness Wrapping Process
Buyers can evaluate how the tape performs during actual wire harness wrapping, including handling, conformability and wrapping consistency.
Application Compatibility
Confirm that the PVC tape construction and temperature range are suitable for the intended wiring harness, electrical assembly or vehicle application.
Adhesion Evaluation
Evaluate adhesion performance on the actual harness materials and surfaces used in production before approving the tape for regular purchasing.
Unwind & Handling
Check unwind behavior and manual handling during the actual wrapping process to confirm compatibility with the customer's production method.
Specification Matching
Verify width, roll length, color, core size and other required specifications against the customer's purchasing requirements.
Bulk Purchasing Evaluation
For regular purchasing, buyers can compare sample performance, technical requirements, packaging and project specifications before confirming larger orders.
What is automotive wire harness tape used for?
Automotive wire harness tape is used for wrapping and securing electrical wiring harnesses. YONGLE 8316 is designed for permanent exterior wrapping of electrical wiring harnesses in passenger vehicles, trucks, electrical assemblies and electronic assemblies.
What is PVC wire harness tape?
PVC wire harness tape uses PVC film as the carrier and adhesive to provide bonding during harness wrapping. YONGLE 8316 uses a soft PVC film with a rubber-based adhesive.
Is YONGLE 8316 suitable for automotive wiring harnesses?
Yes. The TDS specifies YONGLE 8316 for permanent exterior wrapping of electrical wiring harnesses in passenger vehicles and trucks, as well as electrical and electronic assemblies.
Can YONGLE 8316 be used for truck wiring harnesses?
Yes. Truck wiring harnesses are included in the stated application range of the product.
Is YONGLE 8316 suitable for manual wrapping?
Yes. The TDS describes the product as hand-applicable, making it suitable for manual wire harness wrapping applications.
What temperature range is specified for YONGLE 8316?
The specified temperature rating is -25°C to 105°C according to the TDS.
How should buyers evaluate automotive wire harness tape before bulk purchasing?
Buyers should evaluate the tape under their actual application conditions, including adhesion, flexibility, conformability, unwind behavior, wrapping performance and compatibility with the intended harness materials.
Can I request a sample before purchasing wire harness tape in bulk?
Sample evaluation can be discussed with the sales team. Buyers should provide their required width, length, color, application and expected purchasing quantity.
Can other sizes or colors be requested?
The TDS lists other sizes and colors as available on request. Specific availability should be confirmed according to project requirements.
What information should I provide when requesting a quotation?
Useful information includes required tape width, roll length, color, estimated quantity, application, application method, operating conditions and required technical documentation.
Free Sample Program
Before regular purchasing, buyers can discuss sample evaluation requirements with our sales team and assess YONGLE 8316 under their intended wire harness wrapping conditions.
Information for Sample Request
Evaluate Before Regular Purchasing
During sample evaluation, buyers can assess:
Adhesion to the intended surfaces
Flexibility and conformability
Unwind characteristics
Wrapping performance
Manual handling
Suitability for the intended application
Application Projects
Customization Options
For OEM & Harness Manufacturers
YONGLE 8316 can be evaluated for automotive wiring harness projects where PVC film construction, rubber-based adhesive, controlled unwind, conformability and the specified temperature range are required.
Discuss Your Wire Harness Tape Requirement
Please provide your required tape width, roll length, color, application, operating conditions and estimated purchasing quantity so that the appropriate specification can be discussed with our sales team.
