High-Tack PVC Electrical Tape | 80°C Heat Resistant | UM150N Green and yellow electrical tape
| application | Electrical Insulation Tape |
| carrier | PVC |
| caliper | 101~130μm |
| construction | Single-side Tape |
| compliace | RoHS, REACH |
| performace_feature | Low VOC/Odor, Flame Resistant |
| heat_resistance | 80℃ |

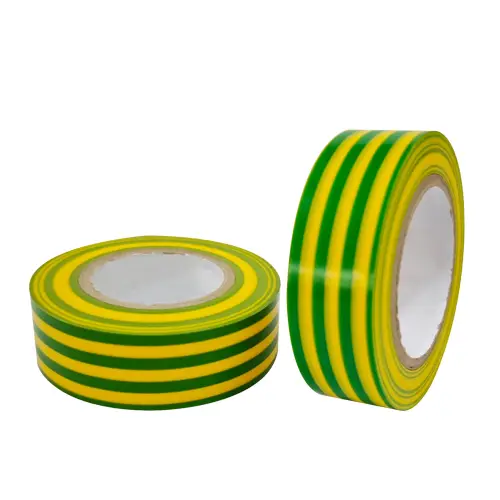

Premium UM150N Green-Yellow PVC Electrical Insulation Tape
Product Overview
UM150N is a high-performance PVC electrical tape engineered for critical wiring protection, combining premium plasticized PVC film with high-tack adhesive.
Electrical Safety: 600V dielectric strength for reliable insulation
Durability: Resistance to chemicals, moisture, and abrasion
Safety Marking: Green-yellow color coding for grounding compliance per IEC 60446
Electrical Safety
600V dielectric strength for reliable insulation in critical wiring applications.
Durability
Resistant to chemicals, moisture, abrasion, and extreme temperatures from -25°C to 80°C.
Safety Marking
Green-yellow color coding compliant with IEC 60446 for grounding wire identification.
Key Features
Flame Resistance
Class B rating (ASTM D1000)
Instant Adhesion
1.0 N/cm peel strength (ISO 29862)
Tensile Strength
15 N/cm (ISO 29864)
Cost-Effective
Competitive pricing with bulk options
Technical Specifications
| Property | Unit | Typical Data | Test Method |
|---|---|---|---|
| Total Thickness | mm | 0.15±0.02 | EN 1942 |
| Tensile Strength | N/cm | 15 | ISO 29864 |
| Elongation at Break | % | 150 | ISO 29864 |
| Voltage Resistance | V | 600 | - |
| Peel Adhesion (to Steel) | N/cm | 1.0 | ISO 29862 |
| Flame Resistance | - | Class B | ASTM D1000 |
| Temperature Rating | °C | -25 to 80 | ASTM D1000 |
Dimensions & Packaging
Widths
19mm, 25mm
Lengths
10m, 20m, 25m
Core Size
32mm/38mm paper core
Standard Roll
19mm x 20m
Applications
Electrical Insulation: Primary protection for ≤600V systems
Safety Grounding: Visual identification of earth wires per IEC 60446
Cable Protection: Industrial cable safeguarding against abrasion and moisture
Moisture Sealing: Waterproofing for outdoor electrical applications
Custom Solutions
10 safety-certified colors (standard green-yellow + 8 additional options)
Bulk pricing for wholesale orders (contact for custom quotes)
Custom printing with company logo or specifications
Compliance & Certifications
RoHS, REACH compliant
UL 510 flame rating
UV-resistant construction
Green-Yellow Tape FAQs
Q: What is the purpose of green-yellow tape?
A: Mandated by IEC 60446 and NEC 250 for grounding wire identification, preventing confusion with live conductors.
Q: Can it be used for general insulation?
A: No—exclusive for grounding. Use solid-color tapes (black, red, blue) for standard insulation.
Q: What is the temperature range?
A: -25°C to 80°C operational, with short-term resistance up to 105°C.
Why Professionals Choose UM150N
"Preferred by contractors for CSA-certified reliability and code-compliant safety marking."
*Note: All data is based on internal testing. Trial applications are recommended for specific use cases.*
Essential for Compliant Work - Exactly as Advertised!
"As an electrical contractor working on commercial sites, we must use tape that meets strict safety standards. This Huaxia green/yellow tape clearly states its compliance (we checked the specs against our requirements), and it performs flawlessly. The colors are bright and consistent, adhesion is strong without being messy, and it holds up under terminal box conditions. Reliable insulation you can trust for critical applications. Will be ordering in bulk."
Survived Extreme Weather - Highly Impressed!
"Used this tape extensively on outdoor marine electrical panels exposed to salt spray, UV, and temperature swings (-10C to 45C). After 18 months, the color hasn't faded significantly, and crucially, the tape hasn't cracked, peeled, or lost its adhesive strength. The PVC remains flexible. Excellent long-term durability for tough environments. Exceeded expectations."
Go-To Tape for Everyday Jobs - Great Value!
"I use electrical tape daily for repairs and installations. This Huaxia green/yellow tape has become my standard. It tears cleanly by hand (no scissors needed!), stretches nicely for a tight seal, and sticks securely without oozing adhesive later. The thickness feels just right – durable but easy to work with. For the price, the quality is outstanding. Highly recommend for pros and DIYers alike."
Perfect for Earth/Ground Wires - Instantly Recognizable
"The specific green/yellow bi-coloring is vital for identifying earth/ground connections, and this tape delivers. The colors are vibrant and distinct, making terminations immediately clear for safety inspections. The tape conforms well to wires and bundling. Used it in a factory re-wiring project, and the inspectors specifically noted the clear, compliant labeling. Does exactly what safety-critical tape should."
Superior Stick & Insulation - No Lifting or Shrinking!
"Tried many tapes that claim strong adhesion, but this one actually delivers. Wrapped connections tightly 3 months ago, and there's absolutely zero lifting at the edges – it's still perfectly sealed. Also impressed that it hasn't shrunk back at all, maintaining full coverage. Tested insulation resistance before and after application; readings were stable and well within safe limits. Confident in the protection it provides."
Q1: What's the special purpose of Green/Yellow PVC tape?
Exclusively identifies grounding (earth) wires in electrical systems per IEC 60446 standards. The bi-color pattern provides visual safety signaling to prevent electric shock.
Q2: Why not use solid green or yellow for grounding?
The green/yellow stripe combination is mandated by NEC Article 250 to prevent confusion with phase/neutral wires. Solid colors are reserved for live conductors.
Q3: What are the key technical specs?
Voltage rating: 600V standard (up to 6,000V breakdown)
Temperature range: -25°C to 105°C operation
Certifications: UL 510 flame rating, UV resistant
Q4: Where is this tape commonly applied?
Essential for grounding applications including electrical panels, industrial equipment, solar installations, EV charging stations, and HVAC systems.
Q5: Can it be used for non-grounding purposes?
No - violates electrical codes. Using for phase/neutral wiring creates safety hazards. For general insulation, use solid-color PVC tapes (black, red, blue).
Always verify compliance with local electrical codes (IEC/NEC/BS 7671)
