N10 Automotive wiring harness tape
| application | Wire harness tape |
| carrier | PVC |
| caliper | 101~130μm |
| construction | Single-side Tape |
| compliace | RoHS, REACH |
| performace_feature | Low VOC/Odor, UV Resistant |
| heat_resistance | 105℃ |

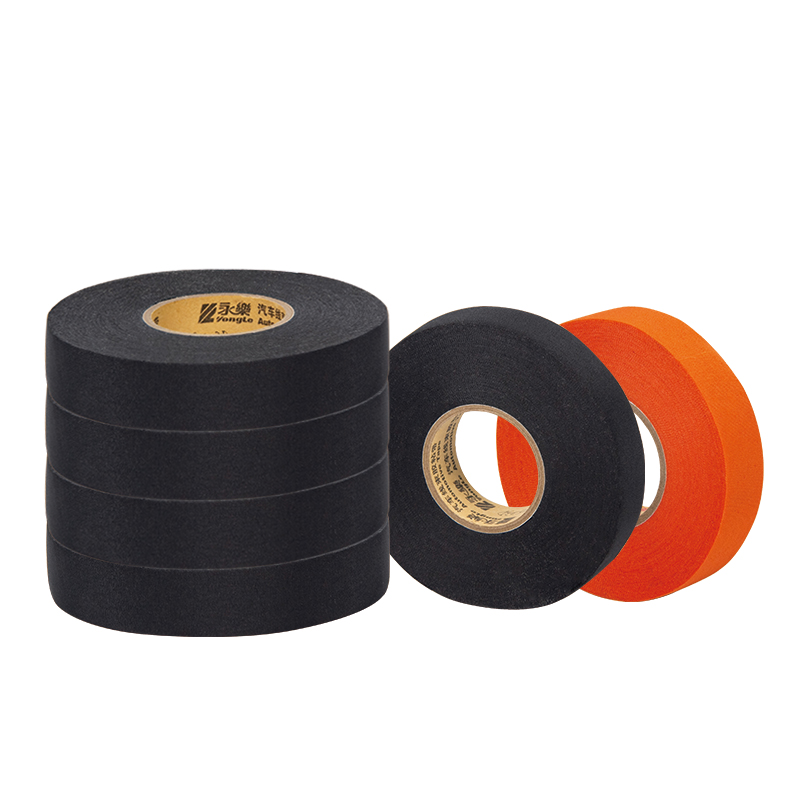

Yongle N10 automotive wiring harness tape, made of soft PVC film, coated with strong rubber adhesive, resistant to temperatures ranging from -25℃ to 105℃,-40 °C operating temperature, hand tearable, with RoHS and Reach.
FEATURES:
·Rubber adhesive ·PVC carrier
BENEFIS:
·Black and other colors available
·Highly conformable
Technical Data:
| Properties | Value | Unit | Test Method |
| Total thickness | 0.120±0.02 | mm | EN 1942 |
| Tensile strength | >20 | N/cm | ISO 29864 |
| Elongation at break | >200 | % | ISO 29864 |
| Adhesion strength | ISO 29862 | ||
| — to steel | >2.2 | N/cm | |
| — to backing | >2.2 | N/cm | |
| Unwind force | 1.5~4.0 | N/cm | EN 1944 |
| Flammability | B(self-extinguishing) | GMW 16740 / LV 312 | |
| Breakdown voltage | 5 | kV | ASTM D1000 |
| Temperature rating | C:-25~105 | °C | GMW 16740 / LV 312 |
STANDARD SIZES:
·Length: 25m, 33m
·Width: 9mm, 19mm, 25mm, 50mm
·Core ID: 38mm
COLORS:
·Black ·Orange ·Gray ·White
·Blue ·Green ·Yellow ·Red
·Brown ·Violet
*Other sizes and colors are available on request
RECOMMENDED USES:
Use as permanent wrapping on wiring harnesses for trucks, cars, recreational vehicles, construction equipment, farm implements, aircraft, aerospace and electronic assemblies. Preferred when requirements include long term reliability under varying and extreme environmental conditions.
STORAGE AND SHELF LIFE：
The shelf life of the product is five years when stored at 20-30°C, max 65% relative humidity and out of direct sunlight, in original packaging.
