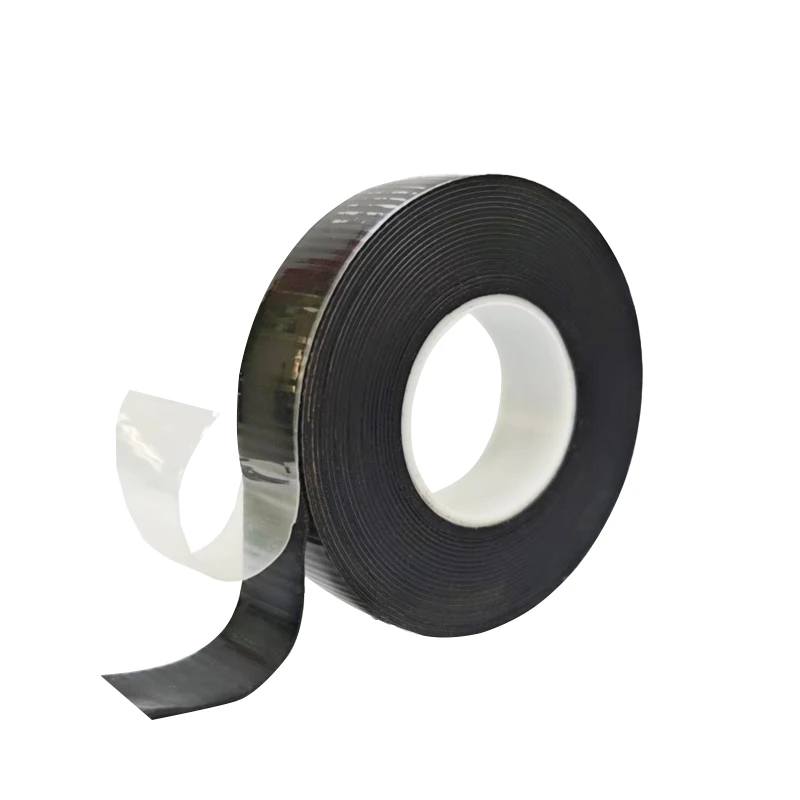

HX-122 Liner less Low Voltage Rubber Tape 80℃ 600V
HX-122 Rubber Tape
yongle Rubber Tape
Liner less Low Voltage Rubber Tape
self-adhesive insulation tape
Low Voltage Rubber Tape
Liner less Tape

HX-122 Liner less Low Voltage Rubber Tape 80℃ 600V

application Rubber Tape
carrier -
caliper 151~200μm
construction Single-side Tape
heat_resistance 80℃
Share:

HX-122 is self -amalgamating, insulating mastic for insulating and sealing all types of overhead and direct buried electrical connections. It has super adhesion, anti-corrosion. For high voltage cable ends water sealing with continuous operating temperature up to 90℃. It is suitable for insulating  protection of cable connection up to 1000V jacketed with vinyl tape. It is suitable for protecting cable joints, tube and cable ends.
Test Result:

PropertyUnitValueTest Method
Total Thicknessmm0.76ASTM-D-4325
Tensile Strengthpsi250UL 510
Elongation at break400%UL 510
Dielectric StrengthKv/mm20UL 510

GENERAL PURPOSE INSULATINGTAPE FOR USE THRU 600V
·Self-amalgamating
·Good electrical properties
·Effective moisture seal
·Good conformability Dielectric Strength
RECOMMENDED USES:
For insulating of splices on solid dielectric cabletr 600V in conjunction with a jacketing tape.
STANDARDS INSTALLATION TECHNIQUES:
Tapes should be stretched during half-wrappings that the tape width is reduced to 3/4 of its origra width. Overlap at least two layers of PVC tape cuisde of the rubber tape to provide mechanical protecion.

-
-
-
-
