8848 Yellow Dry Vinyl Tape | Non-Adhesive PVC Harness Tape | 85°C
| application | Wire harness tape |
| carrier | PVC |
| caliper | 101~130μm |
| construction | Dry Tape |
| compliace | RoHS, REACH |
| performace_feature | Low VOC/Odor, Flame Resistant |
| heat_resistance | 80℃ |

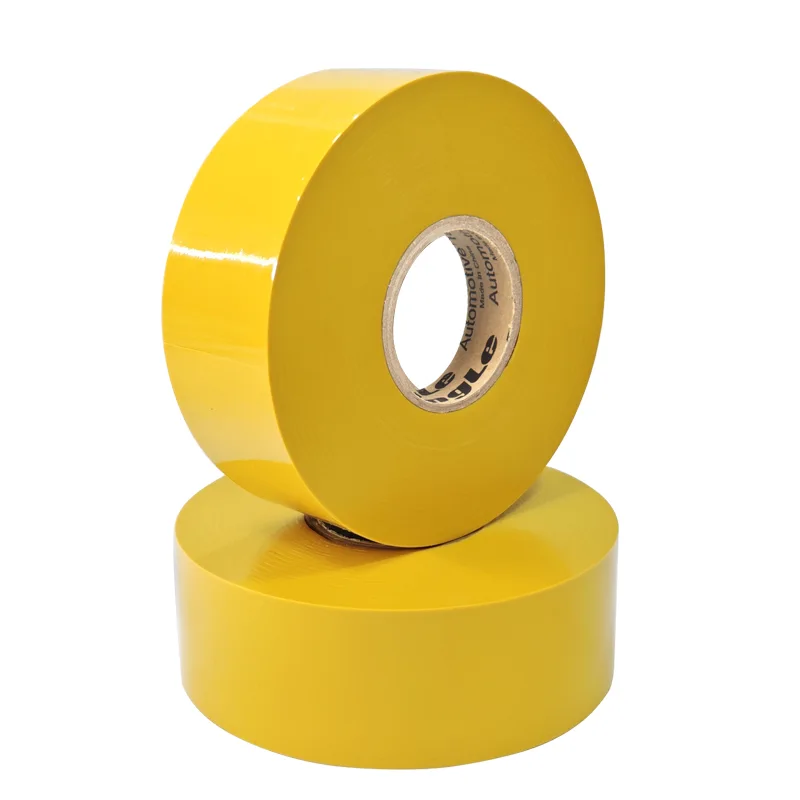

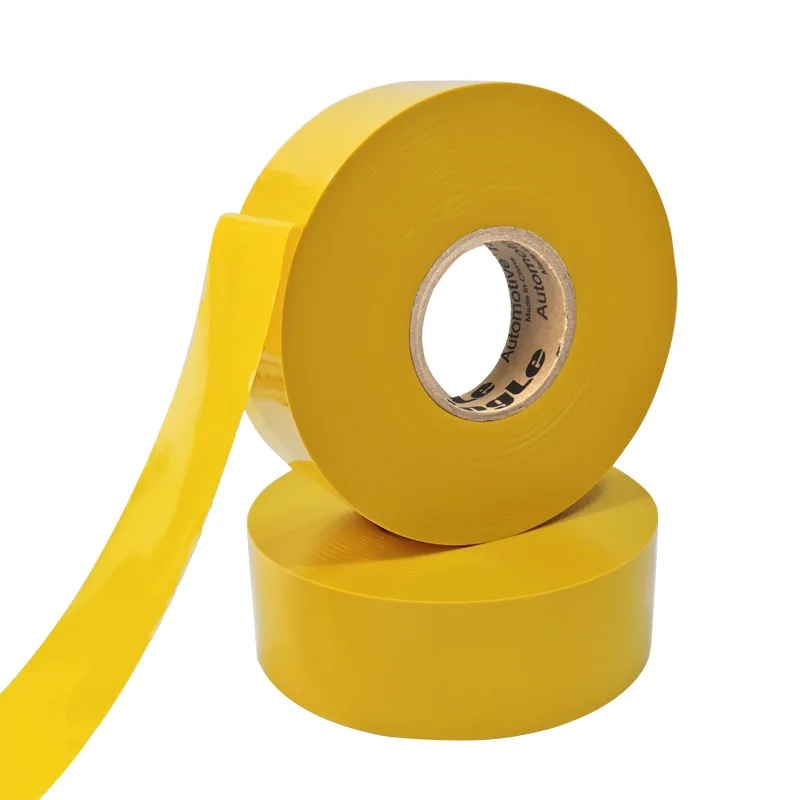

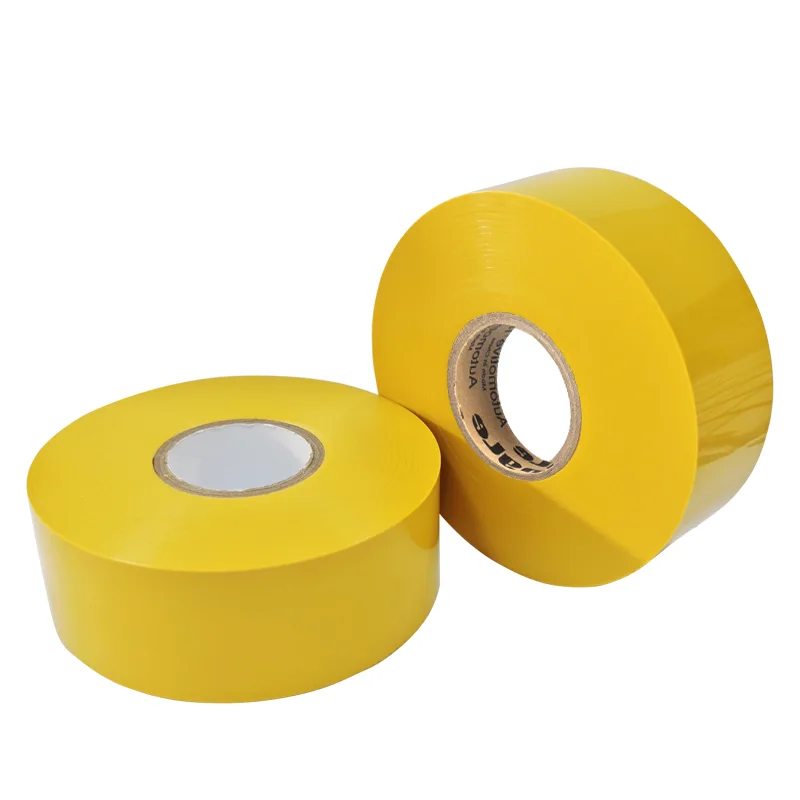

Yongle 8848 PVC Dry Vinyl Tape
Premium Non-Adhesive PVC Tape for Wire Harness Protection
8848 Dry Vinyl Tape is a high-quality non-adhesive soft PVC tape designed for permanent protection of wire harnesses and cables. With its unique self-clinging design, it eliminates glue migration, residue, and cold-flow issues, making it the ideal wire harness tape for automotive and industrial applications.
Key Benefits
Non-adhesive - Leaves no sticky residue
Flame retardant - Class B self-extinguishing
Highly conformable - Adapts to irregular shapes
Temperature resistant - Rated for -25°C to 85°C
RoHS & REACH compliant - Environmentally friendly
Technical Specifications
| Property | Value |
|---|---|
| Material | Soft PVC Carrier |
| Total Thickness | 0.100±0.02 mm (EN 1942) |
| Tensile Strength | >16 N/cm (ISO 29864) |
| Elongation at Break | >250% (ISO 29864) |
| Unwind Force (Hand) | 5.5–13.9 N |
| Unwind Force (Machine) | <2.2 N/16mm |
| Breakdown Voltage | 4.5 kV (ASTM D1000) |
| Temperature Rating | -25°C to 85°C |
| Flammability | B (self-extinguishing) |
Available Options
Note: Yellow non-adhesive tape is recommended for high-voltage hazard identification per ISO standards.
Why Choose 8848 Dry Vinyl Tape?
Superior performance for demanding applications
1. Flame Retardant
Meets GMW 16740 / LV 312 standards (Class B self-extinguishing) for maximum safety in automotive applications. The perfect wire loom harness tape for high-temperature environments.
2. Electrical Insulation
With a breakdown voltage of 4.5kV, 8848 tape provides excellent electrical insulation for wire harnesses. Ideal as electrical harness tape in automotive and industrial settings.
3. Temperature Resistance
Rated for continuous use from -25°C to 85°C, making it suitable for engine compartments and harsh environments. The reliable cable harness tape solution.
4. Eco-Friendly
RoHS & REACH compliant, ensuring environmental safety. Our vinyl non adhesive harness tape meets the highest industry standards for sustainability.
Applications
Where 8848 Dry Vinyl Tape excels
1. Automotive Wire Harnesses
Secures cable bundles in engine bays and passenger compartments without degrading under heat or vibration. The ideal non adhesive harness tape for modern vehicles.
2. Industrial Cable Management
Protects harnesses in electroplating, robotics, and machinery. Resists chemicals and abrasion, making it the perfect electrical loom tape for industrial environments.
3. High-Voltage Identification
Our yellow PVC dry tape is the global standard for danger signaling in EV battery harnesses per IEC 60446. Essential yellow non-adhesive tape for high-voltage systems.
